Victron SmartSolar MPPT Solar Charge Controller | Screw Terminals (75V to 250V, 10A to 70A)
Overview
Victron's SmartSolar MPPT controllers maximize solar harvest using fast maximum power point tracking while charging and protecting your battery bank. This listing is for the TR terminal versions, meaning PV wiring lands on screw terminals.
These models include built-in Bluetooth for monitoring and configuration with the VictronConnect app, and they use a VE.Direct port for wired integration with compatible Victron GX devices and accessories.
These are TR screw terminal, VE.Direct models, not VE.Can. If you need a VE.Can networked SmartSolar MPPT, use this product page: SmartSolar MPPT TR VE.Can.

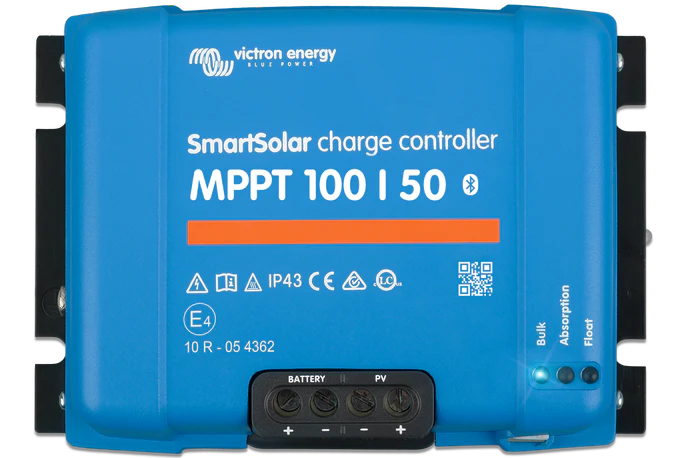

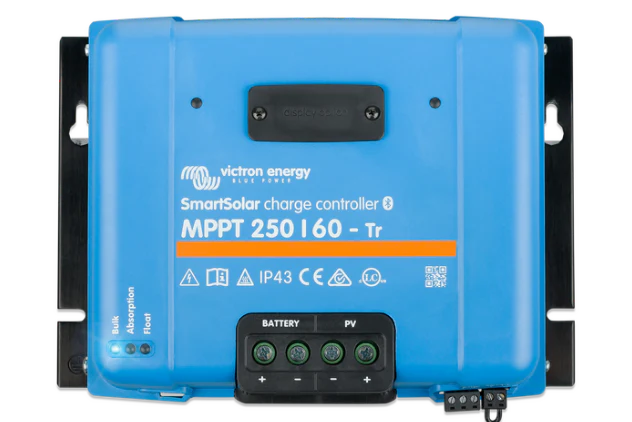

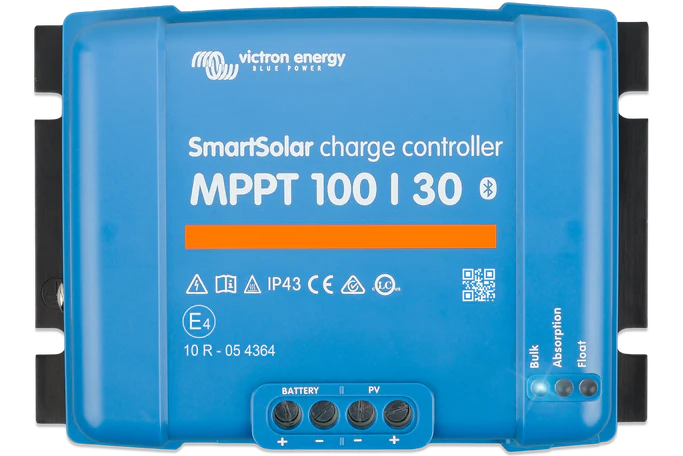

TR Screw Terminal PV Inputs
TR versions use screw terminals for PV connections, which is helpful when bringing PV conductors into a combiner, junction box, or other hardwired install.
Built-in Bluetooth Monitoring
Configure settings and view live status using the VictronConnect app, no external Bluetooth dongle required for these SmartSolar variants.
VE.Direct Connectivity
Use VE.Direct for a wired data connection to compatible Victron monitoring and control hardware. VE.Can is a separate SmartSolar MPPT model family intended for CAN bus networking.
Key Features
- Fast MPPT tracking to maximize energy harvest in changing conditions
- Built-in Bluetooth for VictronConnect monitoring and configuration
- VE.Direct port for wired integration with compatible Victron devices
- Multi-stage charging with configurable battery settings (battery type and parameters depend on system requirements)
- Multiple voltage and current variants, select by PV voltage rating and required charge current
Technical Specs
Model Range Summary
| Spec | Details |
|---|---|
| Brand | Victron Energy |
| Product family | SmartSolar MPPT (TR screw terminal versions) |
| PV input voltage rating (by variant) | 75V, 100V, 150V, 250V (max PV open circuit voltage rating varies by model) |
| Charge current (by variant) | 10A to 70A |
| Monitoring | Built-in Bluetooth for VictronConnect |
| Wired communications | VE.Direct |
| Terminal type | TR screw terminals (PV connections) |
Resources and Downloads
- Manual (SmartSolar MPPT 75/10 up to 100/20)
- Manual (SmartSolar MPPT 100/30 and 100/50)
- Manual (SmartSolar MPPT 150/35 and 150/45)
- Manual (SmartSolar MPPT 150/60 up to 250/70)
Frequently Asked Questions (click to expand)
TR indicates the PV input connections are screw terminals, intended for hardwired PV conductors rather than MC4 plug-in connections.
No. These variants use VE.Direct for wired communications. VE.Can SmartSolar MPPTs are a different model family.
VE.Direct is a direct, device-to-host connection commonly used to connect an MPPT to a GX device. VE.Can versions add CAN bus communications that can simplify networking multiple devices on a shared bus. If you need VE.Can, use our VE.Can SmartSolar MPPT page linked above.
Yes. SmartSolar MPPT models include built-in Bluetooth for monitoring and configuration using the VictronConnect app.
Select a model with a maximum PV open circuit voltage rating that exceeds your array Voc under coldest expected conditions. If you are unsure, share your panel model and series string count.
Choose a controller with enough charge current capacity for your array size and battery charge requirements. Higher current models can support larger arrays and higher charging demand.
SmartSolar MPPT controllers support configurable charging settings and can be used with lithium systems when configured to the battery manufacturer’s requirements.
Yes. VE.Direct is commonly used to connect SmartSolar MPPT controllers to compatible GX monitoring and control devices using appropriate interface cables or adapters.
