Victron SmartSolar MPPT Solar Charge Controller | Network Ready (CAN)
Overview

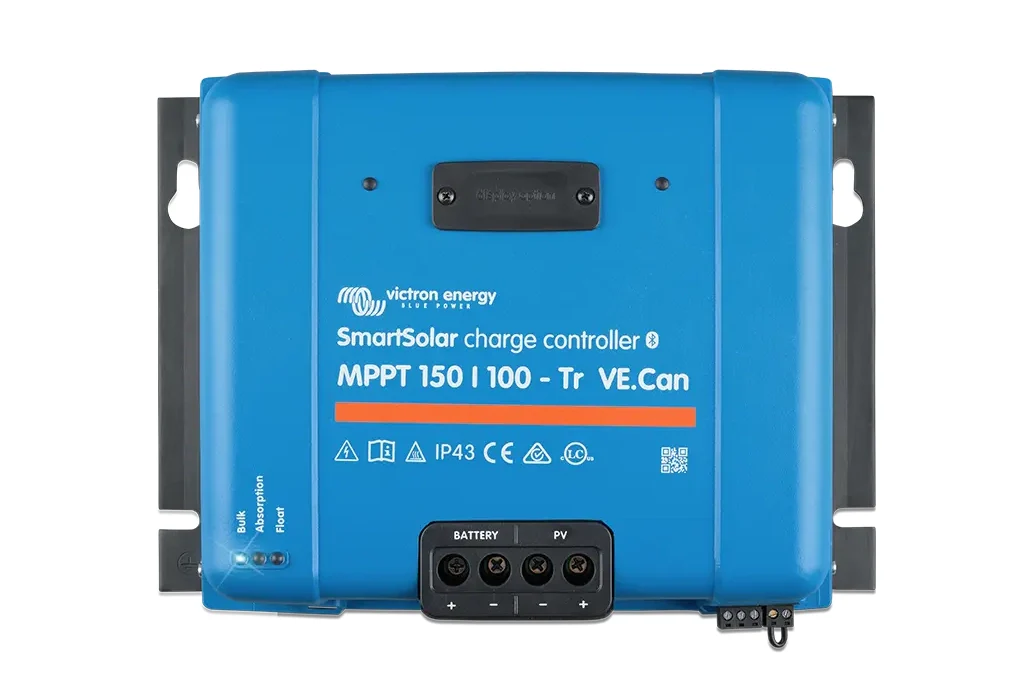

The Victron SmartSolar MPPT Network Ready (CAN) models are solar charge controllers designed for Victron systems where devices share data and coordinate charging. This version includes built-in Bluetooth for setup and monitoring, plus a CAN network port (VE.Can) that supports multi-controller coordination in the same system.
Looking for the simpler version? Choose the Direct Cable (VE.Direct) model when you do not need a CAN network connection or multi-controller coordination.
This listing is for the Network Ready (CAN) version. The Direct Cable (VE.Direct) version is a different product.
Key Features
Easy setup with Bluetooth
Built-in Bluetooth supports configuration, monitoring, and firmware updates using the Victron app.
Network Ready (CAN) for coordinated systems

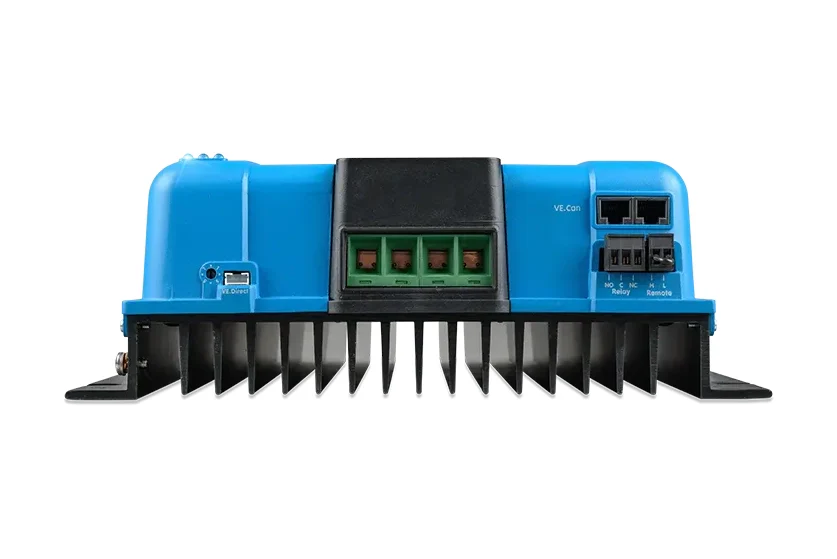

The CAN network port (VE.Can) supports connecting and synchronizing multiple controllers in one system.
Optional plug-in display support
Compatible with the optional SmartSolar pluggable LCD display for local status and settings.
- Multi-stage adaptive charge algorithm
- Remote on/off input for system-level control
- Programmable relay output for alarms or system events
- Built-in protections (per manufacturer documentation)
Technical Specs
Model Selection
| Spec | Details |
|---|---|
| Version | Network Ready (CAN), includes VE.Can port |
| PV input class options | 150V max PV open-circuit voltage family, or 250V max PV open-circuit voltage family |
| Charge current options | 70A, 85A, or 100A (select variant) |
Battery and System
| Spec | Details |
|---|---|
| Battery voltage | 12V, 24V, 48V auto select, 36V by manual setting |
| Connectivity | Bluetooth built in, CAN network port (VE.Can) |
| Relay | Programmable relay (function depends on configuration) |
| Remote control | Remote on/off input |
Resources and Downloads
- Datasheet, MPPT 150/70 to 150/100 VE.Can
- Datasheet, MPPT 250/70 to 250/100 VE.Can
- Installation and User Manual
Frequently Asked Questions (click to expand)
It means this controller includes a CAN network port (VE.Can) for connecting into a Victron network and coordinating multiple controllers in the same system.
Direct Cable (VE.Direct) models use a simpler point-to-point wired connection. Network Ready (CAN) models are intended for systems that benefit from a CAN network connection and multi-controller coordination.
Choose the PV input class that safely covers your array open-circuit voltage under cold conditions. If you are unsure, confirm your array design limits before selecting a variant.
Those are the controller charge-current ratings. Choose the variant that matches your battery bank size and charging requirements.
12V, 24V, and 48V batteries are auto selected. 36V is available by manual setting.
Yes, Bluetooth is built in for configuration, monitoring, and firmware updates using the Victron app.
Yes. These Network Ready (CAN) models are designed for coordinated multi-controller systems when connected on the CAN network.
No display is included in this listing. An optional SmartSolar pluggable LCD display is supported (sold separately).
The controller includes a programmable relay that can be configured for alarms or other system events, depending on your setup.
